Description

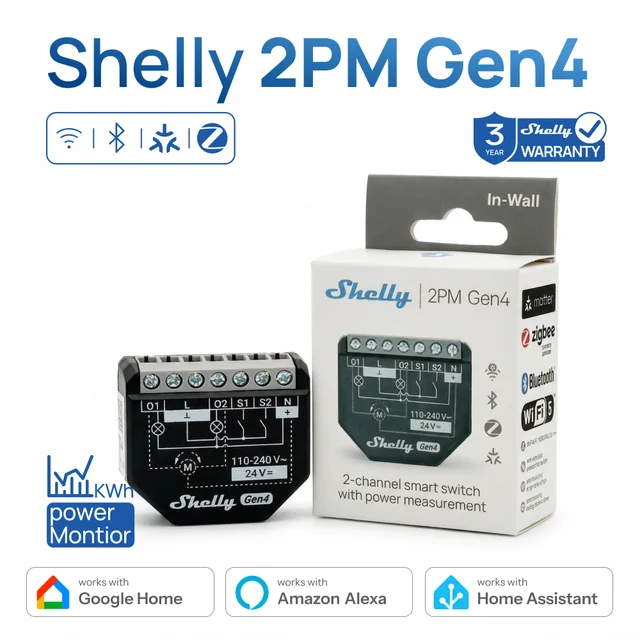

A 2-channel smart switch for control of curtains, blinds, and shutters. Features power metering and multiprotocol support (Wi-Fi, Zigbee, Matter, Bluetooth).

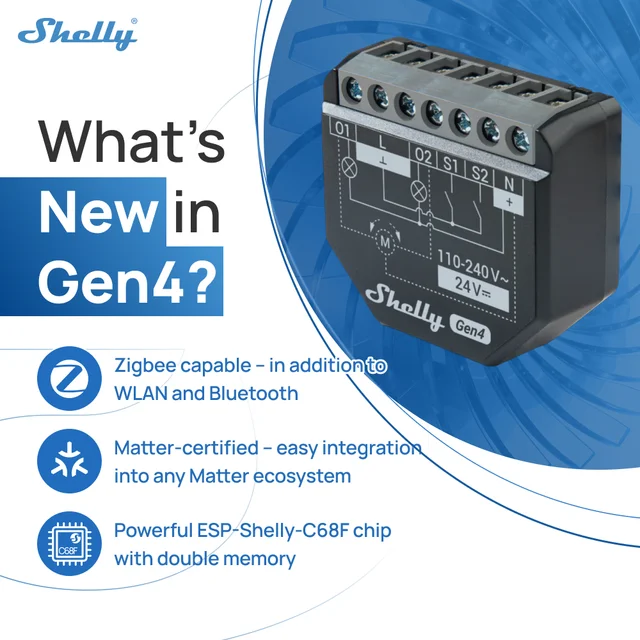

Multiprotocol connectivity: Choose from Zigbee, Bluetooth, Wi-Fi and Matter

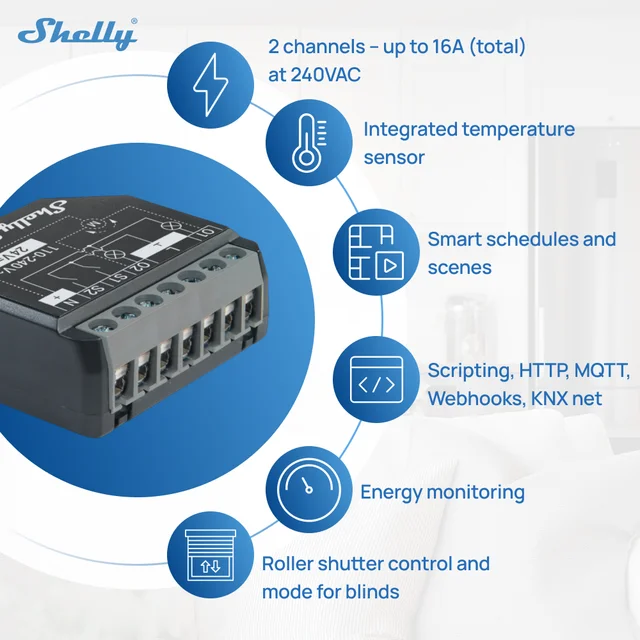

2 channels on the same phase
Power metering on each channel
Cover (roller) control – Automate and adjust the position of roller shutters, blinds, curtains, awnings, bi-directional AC motors.
Slats angle control – use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
Apple Homekit support: Control connected devices using Apple Home app or Siri through Matter
Perfect to retrofit behind existing switches and sockets
Supports schedules, scenes and local actions
Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
Internal temperature sensor for overheating protection
Wi-Fi & Zigbee range extender & Bluetooth gateway
Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
|
Quantity |
Value |
|
Physical |
|
|
Size (HxWxD): |
37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 inch |
|
Weight: |
30 g / 1.06 oz |
|
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
|
Conductor cross section: |
0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
|
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 in |
|
Mounting: |
Wall box |
|
Shell material: |
Plastic |
|
Shell color: |
Black |
|
Terminals color: |
Grey (Mouse Grey) |
|
Environmental |
|
|
Ambient working temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30% to 70% RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
110 – 240 V~ / 24 VDC ±10% |
|
Power consumption: |
< 1.4 W |
|
External protection: |
Tripping characteristic B or C, |
|
Output circuits ratings |
|
|
Max. switching voltage: |
|
|
Max. switching current AC: |
10 A (per channel), 16 A (total), 18 A (total peak) |
|
Max. switching current DC: |
10 A |
|
Sensors, meters |
|
|
Voltmeter (AC): |
Yes |
|
Ammeter (AC): |
Yes |
|
Internal-temperature sensor: |
Yes |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n/ax |
|
RF band: |
2412 – 2472 МHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
|
Bluetooth |
|
|
Protocol: |
5.0 |
|
RF band: |
2402 – 2480 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
|
Zigbee |
|
|
Protocol: |
802.15.4 |
|
RF bands: |
2400 to 2483.5 MHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C68F |
|
Flash: |
8MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
